• Bronze body and poppet
• NPT threaded connections
• VFD compatible
• Stainless steel springs, washers and locknuts
• Valves 1/2″ through 1-1/2″ have a working pressure of 400 PSI
• Valves 2″ and larger have a working pressure of 600 PSI
| Part No. | Description | PSI | Dimensions (AxB) | Master Carton |
| W2239 | 3/4” FNPT Bronze Tapped 1/8” In 1/4” Out | 400 | 1.63” x 3.3” | 12 |
| W2240 | 3/4” FNPT Bronze Tapped 1/4” In 1/4” Out | 400 | 1.63” x 3.3” | 12 |

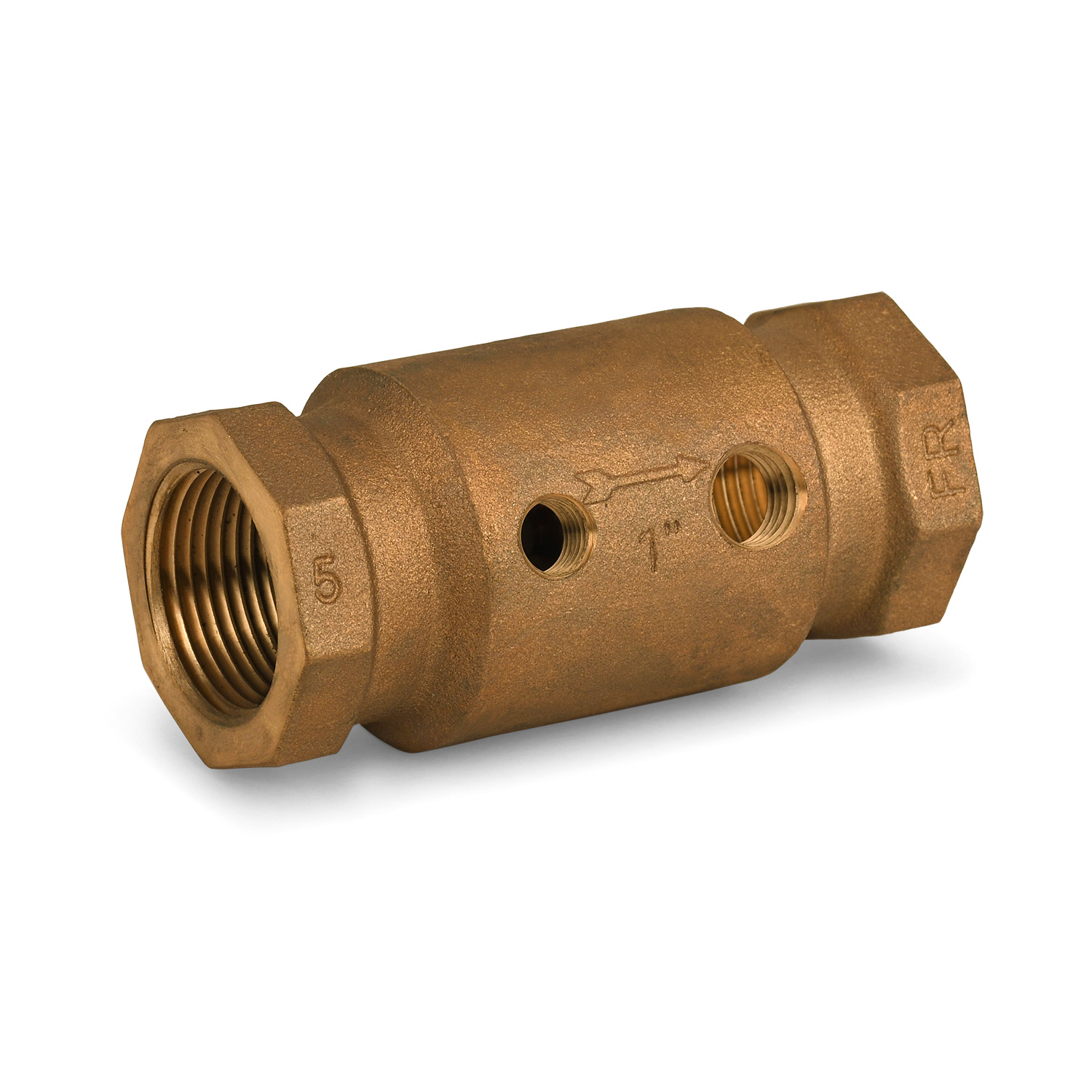

| W2241 | 1” FNPT Bronze Tapped 1/8” In 1/4” Out | 400 | 1.9” x 3.91” | 12 |
| W2242 | 1” FNPT Bronze Tapped 1/4” In 1/4” Out | 400 | 1.9” x 3.91” | 12 |
| W2243 | 1” FNPT Bronze Tapped 1/8” In 1/8” Out | 400 | 1.9” x 3.91” | 12 |
| W2244 | 1-1/4” FNPT Bronze Tapped 1/8” In 1/4” Out | 400 | 2.26” x 4.16” | 12 |
| W2245 | 1-1/4” FNPT Bronze Tapped 1/4” In 1/4” Out | 400 | 2.26” x 4.16” | 12 |
| W2246 | 1-1/4” FNPT Bronze Tapped 1/8” In 1/8” Out | 400 | 2.26” x 4.16” | 12 |
| W2141 | 1” FNPT Bronze Tapped 1/4” Out 1/4” Out | 400 | 1.63” x 3.3” | 12 |
| W2142 | 1-1/4” FNPT Bronze Tapped 1/4” Out 1/4” Out | 400 | 2.26” x 3.3” | 12 |
| W2247 | 1-1/2” FNPT Bronze Tapped 1/8” In 1/4” Out | 400 | 2.65” x 4.46” | 12 |
| W2248 | 1-1/2” FNPT Bronze Tapped 1/4” In 1/4” Out | 400 | 2.65” x 4.46” | 12 |
| W2249 | 1-1/2” FNPT Bronze Tapped 1/8” In 1/8” Out | 400 | 2.65” x 4.46” | 12 |
| W2250 | 2” FNPT Bronze Tapped 1/8” In 1/4” Out | 600 | 3.35” x 5.63” | 6 |
| W2251 | 2” FNPT Bronze Tapped 1/4” In 1/4” Out | 600 | 3.35” x 5.63” | 6 |
