• Bronze body and poppet
• NPT threaded connections
• VFD compatible
• Stainless steel springs, washers and locknuts
• Valves 1/2″ through 1-1/2″ have a working pressure of 400 PSI
• Valves 2″ and larger have a working pressure of 600 PSI
| Part No. | Description | PSI | Dimensions (AxB) | Master Carton |
| W2156 | 2” FNPT Bronze w/ Break Off Plug | 600 | 3.35” x 5.63” | 6 |
| W2201 | 3/4” FNPT Bronze Tapped 1/8” In | 400 | 1.63” x 3.3” | 12 |
| W2202 | 3/4” FNPT Bronze Tapped 1/4” In | 400 | 1.63” x 3.3” | 12 |
| W2203 | 3/4” FNPT Bronze Tapped 1/8” Out | 400 | 1.63” x 3.3” | 12 |
| W2204 | 3/4” FNPT Bronze Tapped 1/4” Out | 400 | 1.63” x 3.3” | 12 |

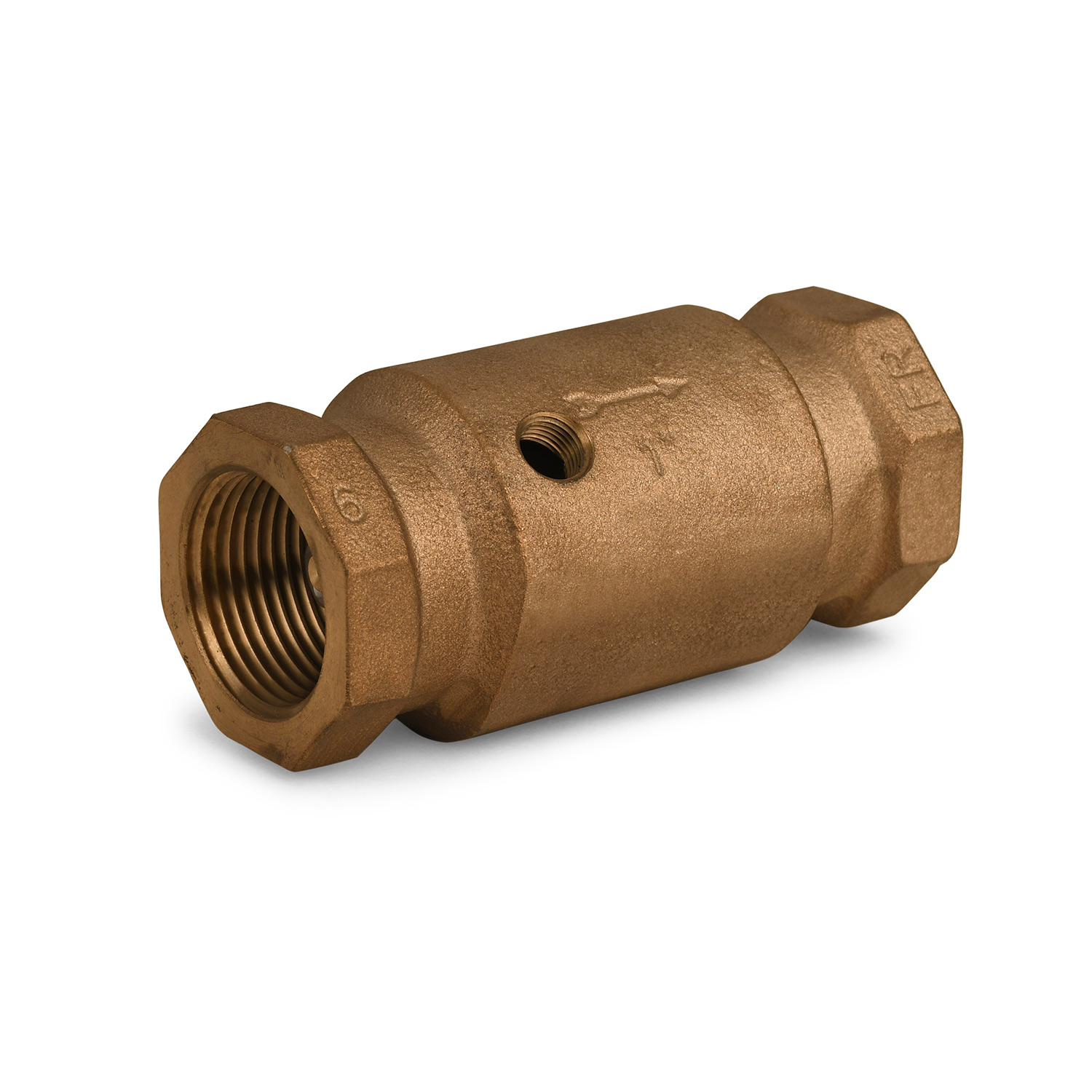

| W2205 | 1” FNPT Bronze Tapped 1/8” In | 400 | 1.9” x 3.91” | 12 |
| W2206 | 1” FNPT Bronze Tapped 1/4” In | 400 | 1.9” x 3.91” | 12 |
| W2207 | 1” FNPT Bronze Tapped 1/8” Out | 400 | 1.9” x 3.91” | 12 |
| W2208 | 1” FNPT Bronze Tapped 1/4” Out | 400 | 1.9” x 3.91” | 12 |
| W2209 | 1-1/4” FNPT Bronze Tapped 1/8” In | 400 | 2.25” x 4.16” | 12 |
| W2210 | 1-1/4” FNPT Bronze Tapped 1/4” In | 400 | 2.26” x 4.16” | 12 |
| W2211 | 1-1/4” FNPT Bronze Tapped 1/8” Out | 400 | 2.26” x 4.16” | 12 |
| W2212 | 1-1/4” FNPT Bronze Tapped 1/4” Out | 400 | 2.26” x 4.16” | 12 |
| W2213 | 1-1/2” FNPT Bronze Tapped 1/8” In | 400 | 2.65” x 4.46” | 12 |
| W2214 | 1-1/2” FNPT Bronze Tapped 1/4” In | 400 | 2.65” x 4.46” | 12 |
| W2215 | 1-1/2” FNPT Bronze Tapped 1/8” Out | 400 | 2.65” x 4.46” | 12 |
| W2216 | 1-1/2” FNPT Bronze Tapped 1/4” Out | 400 | 2.65” x 4.46” | 12 |
| W2217 | 2” FNPT Bronze Tapped 1/8” In | 600 | 3.35” x 5.63” | 6 |
| W2218 | 2” FNPT Bronze Tapped 1/4” In | 600 | 3.35” x 5.63” | 6 |
| W2219 | 2” FNPT Bronze Tapped 1/8” Out | 600 | 3.35” x 5.63” | 6 |
| W2220 | 2” FNPT Bronze Tapped 1/4” Out | 600 | 3.35” x 5.63” | 6 |
